OSCILLOSCOPES
Oscilloscopes, also called Digital Storage Oscilloscopes (DSOs) or Mixed Signal Oscilloscopes (MSOs), are a common type of test instrument used to capture, analyze, and troubleshoot electrical or real world physical signals. Oscilloscopes observe the change of electrical signals over time, continuously graphed on a display as voltage or amplitude vs. time. During observation, oscilloscopes can analyze waveforms parametrically (i.e. frequency, RMS, peak-to-peak amplitude, rise time, etc.) Non-electrical signals, especially mechatronic signals such as vibration, strain, temperature, or current can be converted to voltages and displayed.
Yokogawa oscilloscopes deliver a range of bandwidths, the world's only eight channel and sixteen channel (plus logic) oscilloscopes, unparalleled suites of triggers and signal analysis, and a unique ability to save multiple triggered-events to "History" memory.

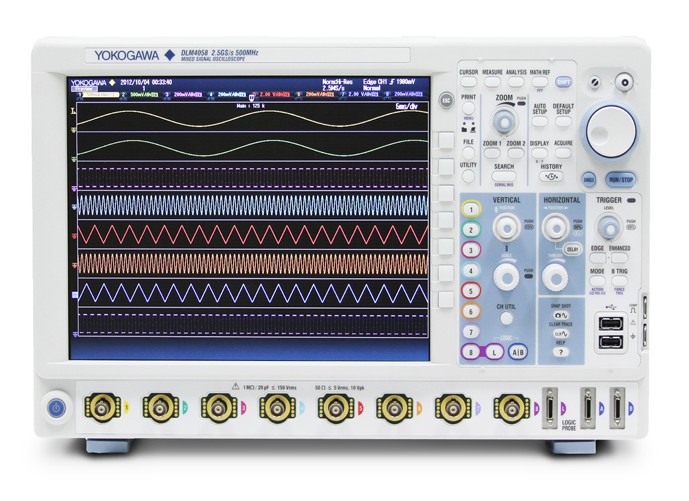

Mixed Signal Oscilloscopes
A mixed signal oscilloscope enables the simultaneous, time correlated observations and analysis of analog with digital (logic) signals, to establish causal relationships between the various areas of a device's electronics. They are purpose built tools for troubleshooting electrical anomalies, measuring parametric values, and monitoring cause and effect relationships between signals.
ScopeCorders
Yokogawa’s ScopeCorder product family provides flexible and high-performance multi-channel test instruments by combining the benefits of a mixed signal oscilloscope and traditional data acquisition recorder. The ScopeCorder delivers high signal fidelity and long term recording for both high speed transients and low speed trends to meet the most stringent measurement requirements.
Voltage Probes
An oscilloscope is only as good as its probes. Our range includes high voltage, differential, active, low capacitance, and passive types, with ranges to 30kV and frequency bandwidths to 5 GHz.
- 701926 Differential Probe 7000V / 50 MHz
- 701927 Differential Probe 1400V / 150 MHz
- 700924 Differential Probe 1400V / 100 MHz
- 700925 Differential Probe 1000V / 15 MHz
- 701921 Differential Probe 700V / 100 MHz
- 701924 Differential Probe 25V / 1 GHz
- 701922 Differential Probe 20V / 200 MHz
- 701920 Differential Probe 12V / 500 MHz
- 701923 Differential Probe 5V / 2 GHz
- 702906 Passive Probe 1000V / 200 MHz
- 701939 Passive Probe 600V / 500 MHz
- 701938 Passive Probe 600V / 200 MHz
- 701940 Passive Probe 600V / 10 MHz
- 701946 Miniature Passive Probe 400V / 500 MHz
- 701944 High Voltage Passive Probe 1000Vrms / 400 MHz
- 701945 High Voltage Passive Probe 1000Vrms / 250 MHz
- 702902 Isolated Passive Probe 1000V / 60 MHz
- 701947 Isolated Probe 1000V / 200 MHz
- 701914 Active Probe 1.5 GHz
- 701913 Active Probe 2.5 GHz
- 701974 Low Capacitance Probe 5 GHz
- 700939 Active FET Probe 10V / 900 MHz
- Miniature Passive Probe 701941
- Miniature Passive Probe 701942
- 200 MHz Passive Probe 700960
- 400 MHz Passive Probe 700988
- PB500 500 MHz passive probe (701943)
Current Probes
Current probes allow you to measure DC or AC current. Yokogawa's selection of current probes allow measurements ranges up to 500 ARMS and bandwidths up to 100MHz.
- 701931 Current Probe 2 MHz / 500 ARMS
- 701930 Current Probe 10 MHz / 150 ARMS
- 701928 Current Probe 100 MHz / 30 ARMS
- 701932 Current Probe 100 MHz / 30 ARMS
- 701929 Current Probe 50 MHz / 30 ARMS
- 701933 Current Probe 50 MHz / 30 ARMS
- 701918 Current Probe 120 MHz / 5 ARMS
- 701917 Current Probe 50 MHz / 5 ARMS
